Use a custom domain name instead of the OBS Endpoint


To use a custom domain name instead of the OBS Endpoint, you can simply use our API Gateway service to proxy the standard OBS Endpoint, here is how to do it.

Pre-requisite


  • External domain name subscribed from your favorite registrar
  • Valid SSL Certificate
  • Access to OBS Service
  • Access to API Gateway Service

Limitations


  • 1 API per bucket and per type of operation (put, get…)
  • 1 Architecture possible, with folders, or with root folder only

How-to


Create the custom API (repeat this process for each request type and bucket)


On the Flexible Engine console, click on API Gateway Service

  1. In the API Publishing tabs, click on API Groups then click on Create API Group
  2. Name it and click on OK
  3. After the creation, click on the group you created and in the APIs tab, click on Create API
  4. Name it, select the API Groups you created and select IAM in the security section then click on Next

Warning

On the next page, 2 architectures are possible :
You always use folders in the bucket, follow the step 5
You will not use folders in the bucket, go to the step 7

Folders Architecture

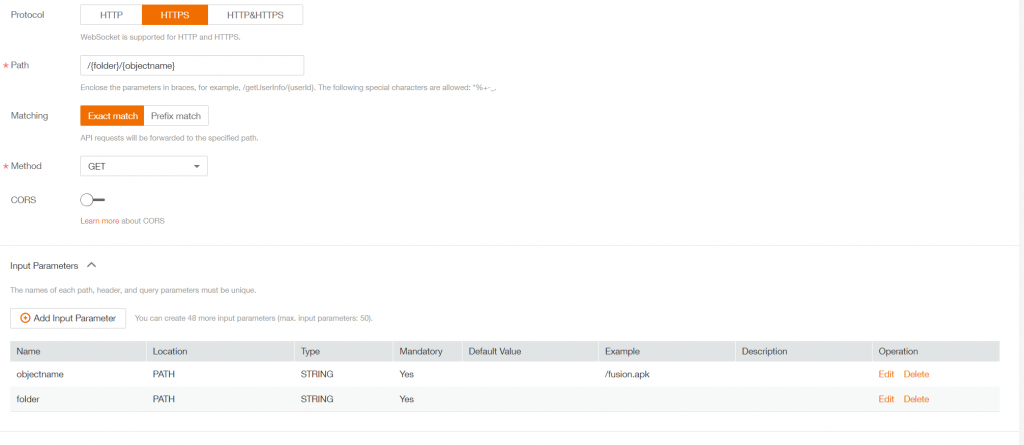

5. Choose HTTPS, fill the path, choose the method you need (Get, Put…) then add the input parameter as below

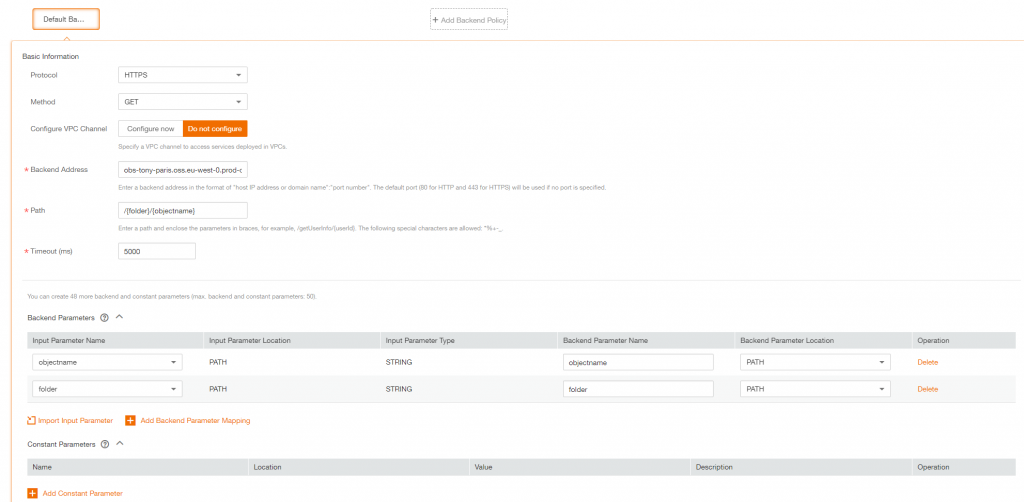

6. For the backend address put the URL of the complete URL of the bucket (you can found it in the OBS Console) then follow the image below

Go to step 9.

Root folder Architecture


7. Choose HTTPS, fill the path, choose the method you need (Get, Put…) then add the input parameter as below

object storage root folder architecture step 1

8. For the backend address put the URL of the complete URL of the bucket (you can found it in the OBS Console) then follow the image below

object storage root folder architecture step 2

9. HTTP/1.1 status_code Server: Server Name x-amz-request-id: request id x-reserved: amazon, aws and amazon web services are trademarks or registered trademarks of Amazon Technologies, Inc x-amz-id-2: id Content-Type: type Date: date Content-Length: length
Then click on Finish
On the next page, click on Publish API. Your API is now online.

Bound the external domain name to the API Group


On the Flexible Engine console, click on API Gateway Service, then on the API Groups, click on the API group you created and click on the domain name tab

  1. In this page, you can find the subdomain name of the API Group created, go to your registrar then create a CNAME entry that redirect to this subdomain
  2. Go back on the Flexible Engine API Gateway Console, and now click on Bind Domain Name then enter your domain name
  3. After the domain is added, click on Add SSL Certificate

Now you can access your bucket through your custom domain name
