How to find the mapping between EVS disk and disk in Microsoft Windows


This section describe how to find a common identifier between an EVS disk and the disk mounted Microsoft Windows.

On the Flexible Engine console


Find the identifier in the console :

  • Go in the Elastic Cloud Server feature
  • Click on the targeted instance

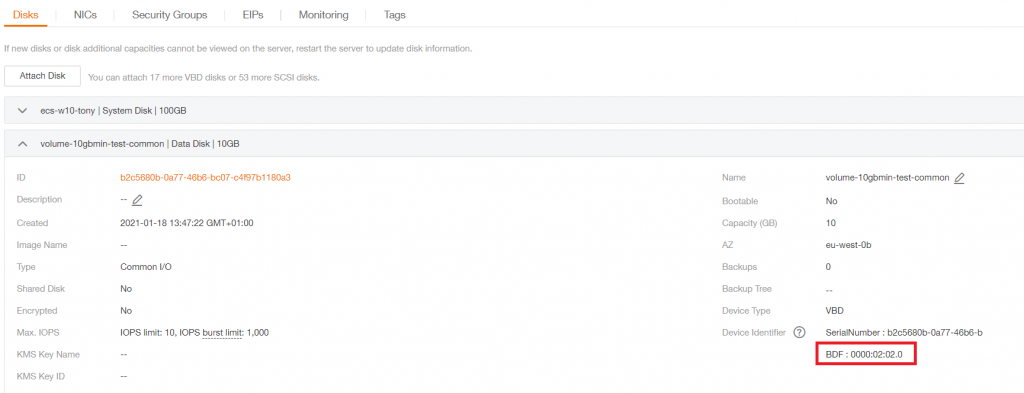

  • In the disks tab, select the targeted disk, then remind the BDF identifier as shown below

On the Microsoft Windows OS


Find the disk number in the OS :

  • Right click on the “Windows” start button then click on Disk management

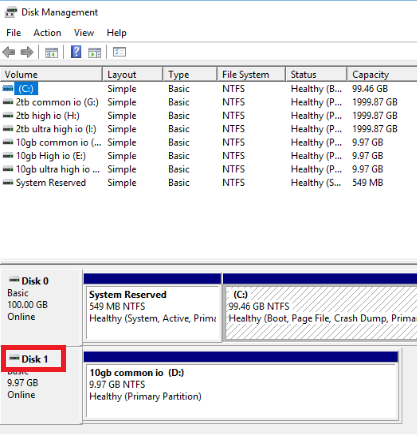

  • Select the targeted disk and remain the number assigned as shown below

Find the the BDF identifier :

  • Right click on the “Windows” start button then click on “run” and type “powershell”
  • Then copy this command : get-disk -Number 1 | fl * | findstr UniqueId

Info

Where the -Number 1 indicate that you select the disk 1. Don’t forget to match with the targeted disk

  • The command will return you a UniqueID in the format 0000000X0000000X where X represent the numbers different from 0 in the BDF identifier in the console
  • Check if the disk UniqueID match with the BDF number in the console

Example

with the BDF number showed in the console screenshot above :
We have the following BDF :
0000:02:02.0
In the Microsoft Windows OS, the powershell command returned this
UniqueID : 0000000200000002
So it match perfectly as we found the 2 sames values
