Workspace

Active Directory

How to interconnect my on premise AD ?


There is 3 recommended solutions :

  • Use an IPSEC VPN to interconnect your on premise AD and Workspace (you can use our VPNaaS feature)
  • Use a FE Direct Connect (with MPLS VPN or other)
  • Create a AD replica in Flexible Engine and replicate the content with from your on premise AD. This solution requires also of the two others solutions, but can be great to reduce external network consumption.

Multi domain integration


For today (03/2020), multi domain integration is not supported.
Workaround is to use one project per sub domain

What about rights needed for the workspace admin ?


Everything is specified in the workspace documentation, but here is a reminder of the account right in case an issue for deleting computers in AD when desktop is deleted (most common) is encountered

Note

To interconnect a third-party system with FusionAccess, you must configure related ports on the AD server, and assign the Create User objects, Delete User Objects, Create Organizational Unit objects, and Delete Organizational Units objects permissions to the domain administrator account. For details about how to configure the domain account, see Configuring a Domain Administrator Account Used for a Third-Party System to Connect to FusionAccess.

Why time/date in the master image is very important ?


If the time is wrong, you can encounter an issue when you’ll deploy a wrong timed images. This will cause a AD join failure.

Where are my users ?


You users are not shown in the workspace console, only users with dedicated desktop created will be shown in the users tabs on Workspace Console (a copy of the users informations which have already a desktop is done on the worskpace infrastructure to permit login in case of AD Failure)

I want to put my computers in a specific OU ?


You can put the desktop you will create in the OU of your choice, just enter the path to the OU in the case below in the desktop creation form :

I deployed my computer in the wrong OU, can I have move it


Sure, you can move the desktop, then think to reboot it in case you have specific GPO (Group Policy Object) on this new OU.

How are named my desktop ?


In the desktop creation process from Workspace console, name of desktop will take the name of users or group (if it is Desktop Pool) with a number, (exemple : tony01, it-group01)

The name can be choose with using API to create desktop

User Experience

Multi Screen Management


Workspace support multi-screen management, you can configure it in the setting of the Workspace client when you are connected on a desktop

Note

Multi-Screen management is only available on the Microsoft Windows client from the v1.8.00003

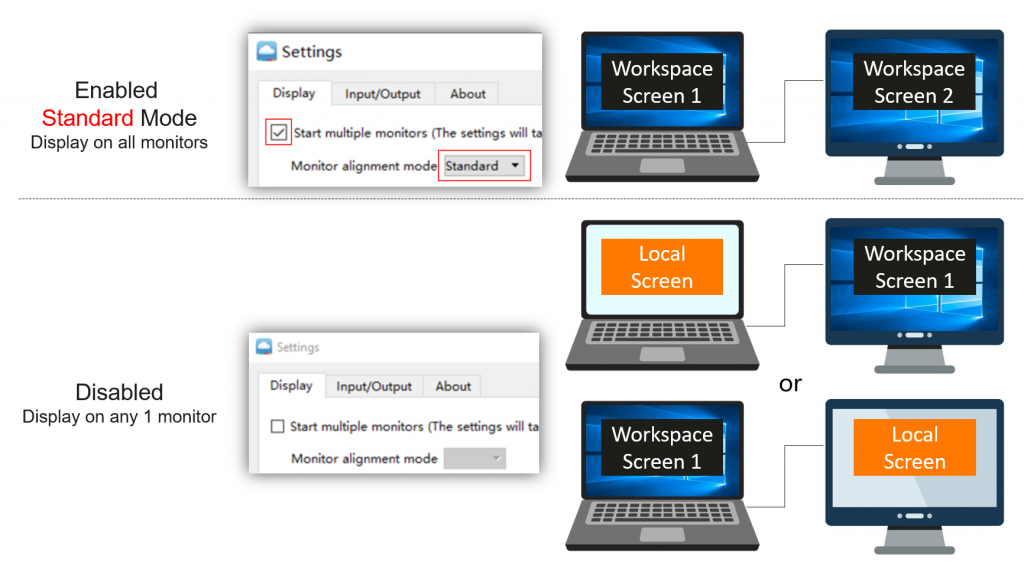

2 monitors

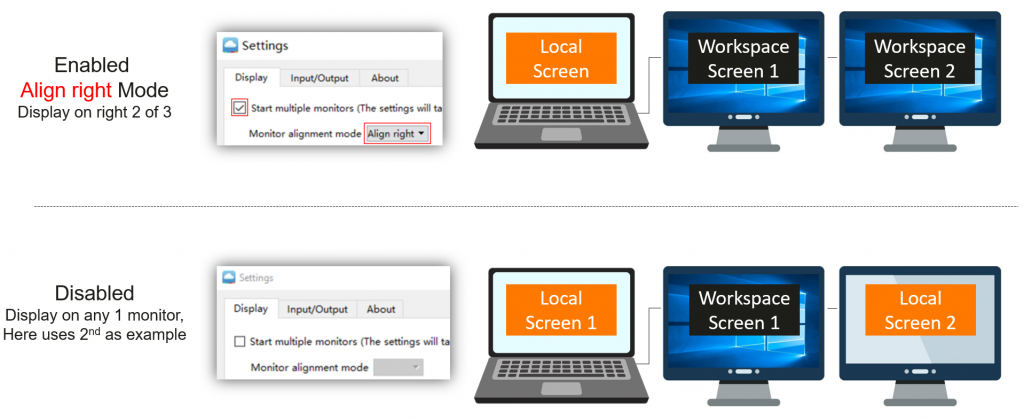

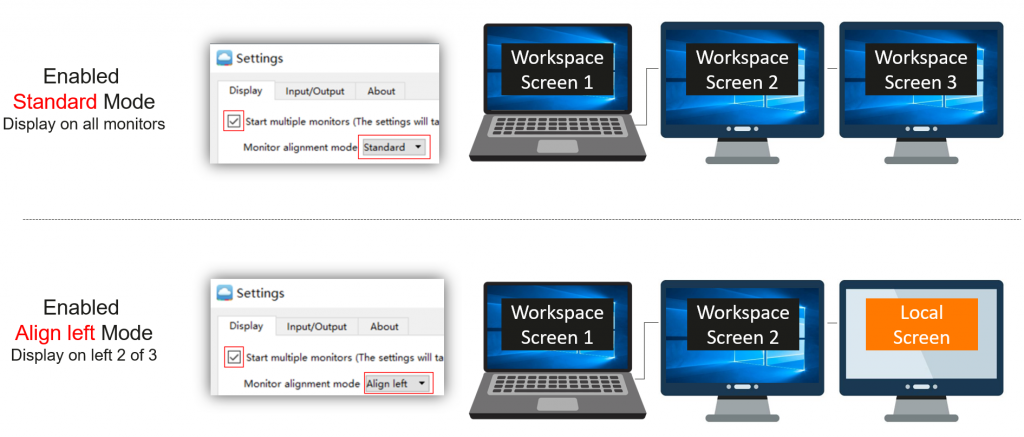

3 monitors

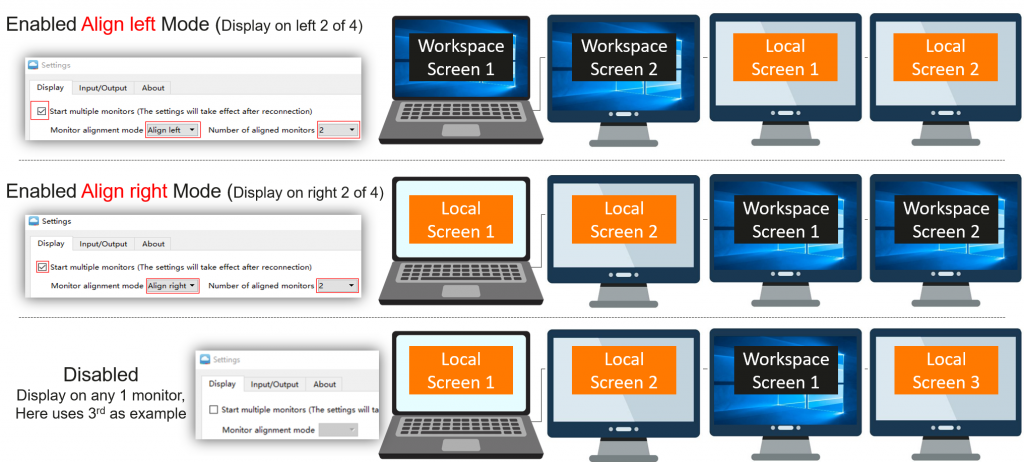

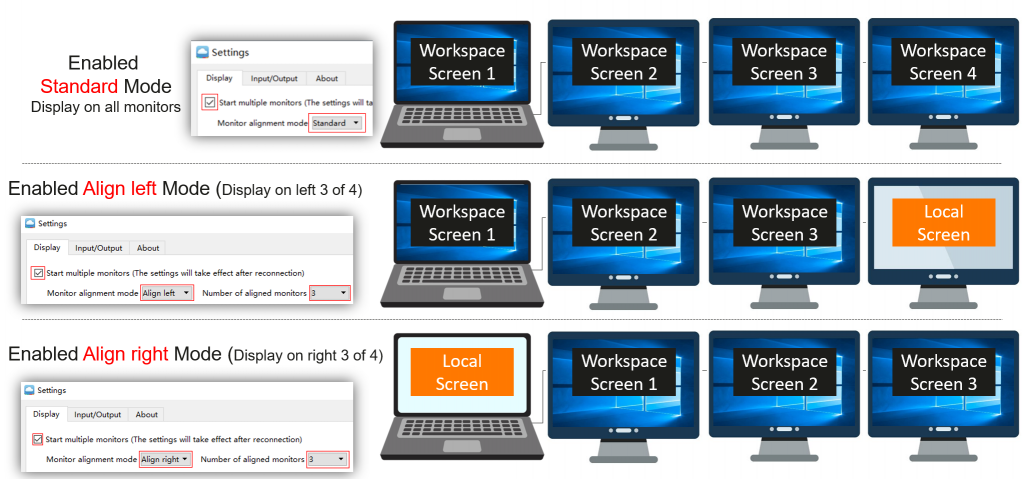

4 monitors

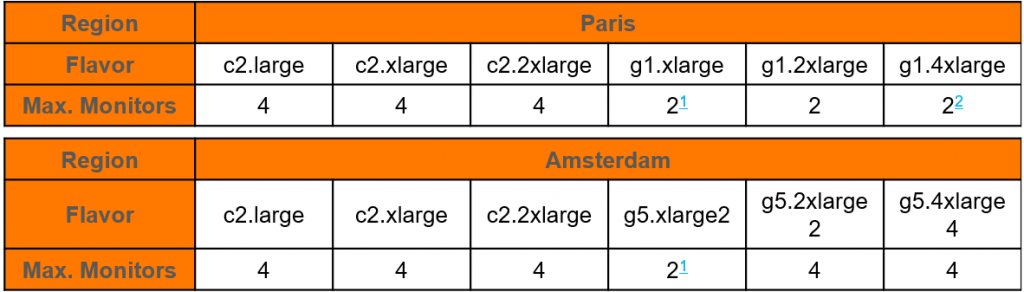

Limitations

  • Support up to 4 monitors, must be horizontally-arranged
  • The settings will take effect after reconnection

Note 1: Restriction by NVIDIA vGPU, 1Q only supports up to 2 monitors, refer to below link for more details:
https://docs.nvidia.com/grid/7.0/grid-vgpu-user-guide/index.html

Note 2: g1.4xlarge is M60-4Q, though NVIDIA supports 4 monitors, current Workspace Version supports only 2 for GPU desktops

Desktop Private Image

Language

How to change the public image to French (Keyboard Layout and interface) for all users ?


You can follow this guide (only in French now)

Enable Windows Defender on private ECS image


Info

If you want to use Windows Defender as main antivirus for Workspace, it is enabled by default when you use the standard public image for Workspace. But when you want to customise a image, you have to deploy a ECS with an… ECS image that do not contains Windows Defender in order to not interfere with servers apps.

In order to re-enable it, you have to follow a specific process as Microsoft doesn’t include the possibility to enable or disable this feature.

For Windows Server 2016 ECS Image


  • Download the Windows Server 2016 evaluation ISO then extract all the content in C:\iso_windows (create the folder)
  • Create the following two folders on the root of C: drive :
  • mountdir
  • msu
  • Open a command line in admin then type :
dism /export-image /SourceImageFile:C:\iso_windows\sources\install.wim /SourceIndex:2 /DestinationImageFile:C:\install.wim /Compress:max /CheckIntegrity
  • Mount the ‘install.wim’ files into “C:\mountdir” :
dism.exe /mount-wim /WimFile:C:\install.wim /index:1 /mountDir:c:\mountdir
  • Next, download this update package then put it in the ‘C:\msu’ folder and update the mounted image :
Dism /Add-Package /Image:C:\mountdir\ /PackagePath:C:\MSU\windows10.0-kb4103720-x64_c1fb7676d38fffae5c28b9216220c1f033ce26ac.msu /LogPath:AddPackage.log

This will take few minutes to proceed

  • After the process is finished, open ‘Task Manager’ and close the ‘Explorer.exe’ task. (Mandatory or the next step will fail)
  • Commit the update in the offline wim image :
Dism /Unmount-WIM /MountDir:C:\mountdir /Commit
  • Finally, install the Windows Defender feature :
Dism /Online /Enable-Feature /FeatureName:Windows-Defender /all /source:WIM:C:\install.wim:1 /LimitAccess
  • Reboot the server
shutdown -r -t 0

Workspace GPU benchmark

g1.xlarge 4 vCPU 8 GB RAM 1/8 M60 1GB vRAM
(Windows server 2016 – 80GB Ultra High-IO – Driver 370.28 )

3dmark (TimeSpy DX12) 3dmark (Frire Strike DX11) Unigine Superposition (OpenGL 1.1, 1080p medium) Unigine Superposition (Direct X, 1080p medium)
Total Score Graphics Score CPU Score Total Score Graphics Score Physics Score Combined Score Score
673 586 4508 8593 9375 12800 4057 1433

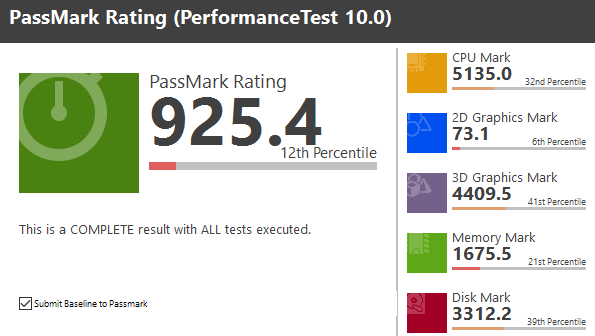

PassMark Performance Test(OpenCL/ CUDA not supported)

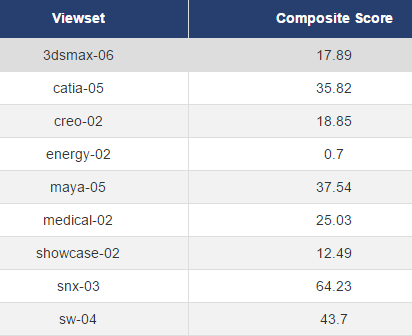

SPECviewperf 13

g1.2xlarge 8 vCPU 16 GB RAM 1/8 M60 1GB vRAM
(Windows server 2016 – 80GB Ultra High-IO – Driver 370.28 )

3dmark (TimeSpy DX12) 3dmark (Frire Strike DX11) Unigine Superposition (OpenGL 1.1, 1080p medium) Unigine Superposition (Direct X, 1080p medium)
Total Score Graphics Score CPU Score Total Score Graphics Score Physics Score Combined Score Score
673 586 4508 8593 9375 12800 4057 1433

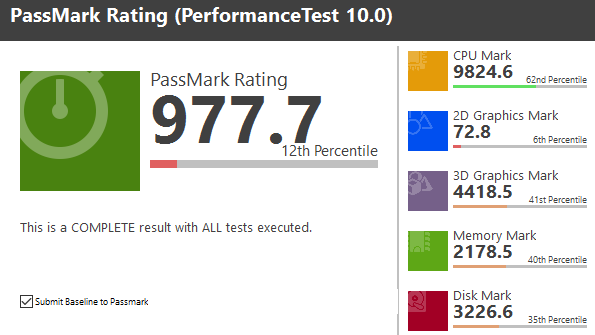

PassMark Performance Test(OpenCL/ CUDA not supported)

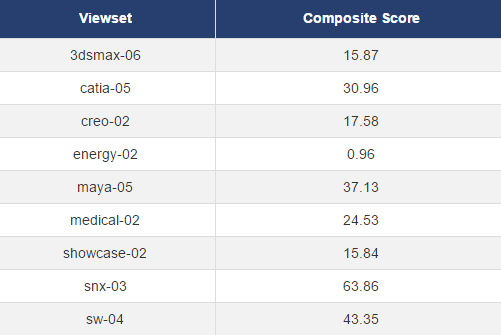

SPECviewperf 13

g1.4xlarge 16 vCPU 32 GB RAM 1/4 M60 4GB vRAM
(Windows server 2016 – 80GB Ultra High-IO – Driver 370.28 )

3dmark (TimeSpy DX12) 3dmark (Frire Strike DX11) Unigine Superposition (OpenGL 1.1, 1080p medium) Unigine Superposition (Direct X, 1080p medium)
Total Score Graphics Score CPU Score Total Score Graphics Score Physics Score Combined Score Score
3582 3252 8429 9975 11012 19379 4098 6822

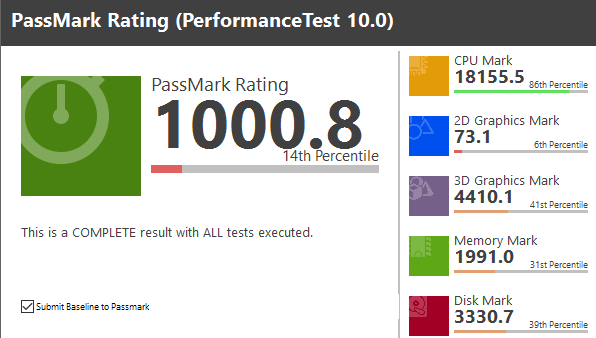

PassMark Performance Test(OpenCL/ CUDA not supported)

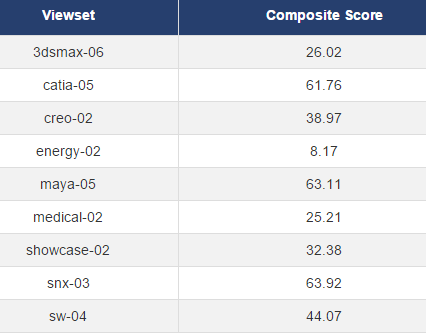

SPECviewperf 13

g1.2xlarge 8 vCPU 16 GB RAM 1/8 M60 1GB vRAM
(Windows server 2016 – 80GB Ultra High-IO – Driver 370.28 )

3dmark (TimeSpy DX12) 3dmark (Frire Strike DX11) Unigine Superposition (OpenGL 1.1, 1080p medium) Unigine Superposition (Direct X, 1080p medium)
Total Score Graphics Score CPU Score Total Score Graphics Score Physics Score Combined Score Score
673 586 4508 8593 9375 12800 4057 1433

PassMark Performance Test(OpenCL/ CUDA not supported)

SPECviewperf 13

g1.4xlarge 16 vCPU 32 GB RAM 1/4 M60 4GB vRAM
(Windows 10 – 500GB Ultra High-IO – Driver 370.28)

3dmark (TimeSpy DX12) 3dmark (Frire Strike DX11) Unigine Superposition (OpenGL 1.1, 1080p medium) Unigine Superposition (Direct X, 1080p medium)
Total Score Graphics Score CPU Score Total Score Graphics Score Physics Score Combined Score Score
3622 3297 8216 10113 11152 20745 4099 6944

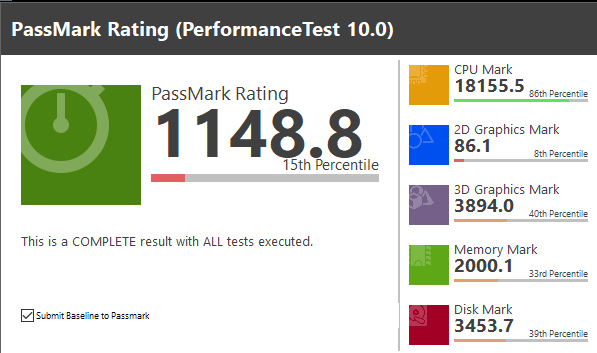

PassMark Performance Test(OpenCL/ CUDA not supported)

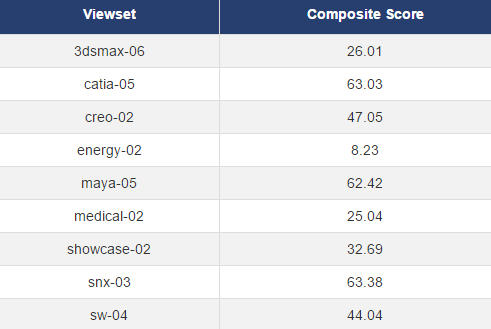

SPECviewperf 13

Workspace network

General facts

About “management network”

Management network is only used by management server to manage workspace desktop and also capture the audio / video / mouse & keyboard traffic in order to encapsule through the workspace manager to the end user (diagram to come)

In the creation process, take care to not overlap the management network with others subnet you’ll use.

Network Consumption

What is the prerequisite of bandwidth for general desktop ?

  • Average bandwidth: 300 kbps/ instance. Peak bandwidth: 5 Mbps/ instance.
  • Packet loss rate ≤ 0.01%
  • Round-trip delay ≤ 30 ms
  • Network Jitter ≤ 10 ms(Floating in the range of ±10ms of average delay)

What is the prerequisite of bandwidth for GPU Desktop ?

  • Max bandwidth: 20 Mbps/ instance
  • Packet loss rate ≤ 0.01%
  • Round-trip delay ≤ 30 ms
  • Network Jitter ≤ 10 ms(Floating in the range of ±10ms of average delay)
  • These values are for reference only and may be more stringent depending on the application scenario.

Do you have some example of bandwidth consumption for software ?

Scenario Type Scenario Bandwidth Reference Value
Silence No application running 4 Kbit/s
Microsoft Office running without document editing 20 Kbit/s  –
Office applications Word 45 Kbit/s
PPT 589 Kbit/s
Video playback Standard definition (480p) 6.85 Mbit/s
High definition (1080p) 13.7 Mbit/s
Other applications PDF 265 Kbit/s
IE 150 Kbit/s  –
Picture browsing 123 Kbit/s  –

Workspace Security

The traffic between Workspace and end users is secure ?

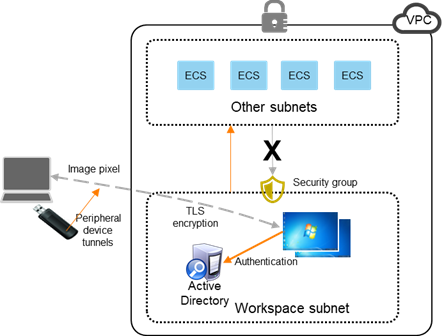

Yes, it uses TLS Encryption between servers and client. That why there is no security issue to use it through internet. (Figure 1)

How to secure Workspace Network with the others ECS ?

In the creation form of the infrastructure, you can select the VPC and subnets you want to use. You also have a Workspace Security Group that you can manage to control the traffic between Workspace Desktop and other ECS
